Fruit & Vegetable Processing Lines
Configure juice, puree, paste, jam or beverage production around the real material flow: receiving, washing, extraction or pulping, tanks, heat treatment and filling.
ANMX Process Line Showcase
Receiving, Washing, Extraction, Tanks and Filling Work as One System
The front end protects raw material quality; the middle section controls yield, pulp, Brix and viscosity; the final section protects shelf life through sterilization, CIP and the right package.
Receiving
Washing / Inspection
Extraction / Pulping
Refining / Tanks
Sterilization / Filling
Choose the Product. Then Build the Correct Process Route.
Orange, apple, mango, tomato and vegetable projects need different extraction, pressing, pulping, evaporation and sterilization choices. ANMX organizes the proposal around that route.
Tell Us the Product. We Will Match the Line.
Share raw material, fruit size, hourly output, final product, Brix or pulp target, package type and destination country so the quotation starts from production logic.
Digital Line Explorer
Open the line. Inspect each machine.

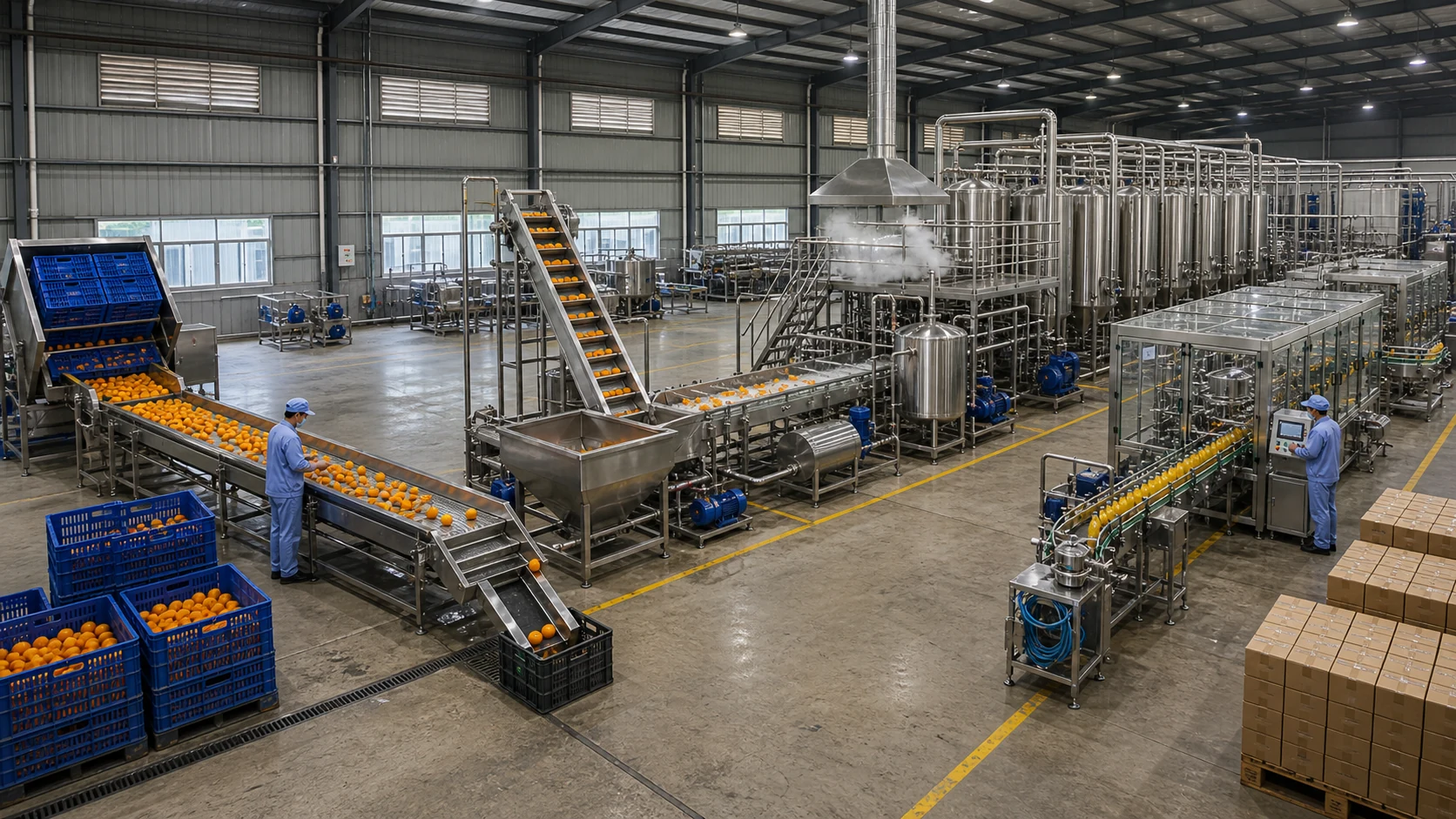

Move through the production route as a buyer would inspect the plant: front-end receiving, washing, inspection, extraction or pulping, tanks, heat treatment, filling and support systems.
8 process nodes
360 factory panorama
Real photos and video scenes
Loading factory panorama...
ANMX International Trade Co., Ltd.
Find the Line That Moves Your Product
Find the Line
That Moves
Your Product
ANMX supplies complete fruit and vegetable processing lines and key equipment for orange juice, apple juice, mango puree, tomato paste, carrot products, jams and beverage preparation. Each line is built around the final product, target capacity and packaging format.
2.5-100 t/h reference capacity range
4 product routes juice, puree, paste and concentrate
Full process scope from raw material receiving to filling
Receiving
Washing
Extraction / Pulping
Sterilization
Filling
Product Reel
Choose the line by the product you want to sell.
Compare ready-to-quote production lines for juice, puree, paste and beverage projects, then open the equipment section when you need technical details.
Crate receiving, washing, roller inspection, citrus extraction, juice collection, refining, sterilization and aseptic filling.
Washing, sorting, crushing, belt pressing, enzymolysis, filtration, concentration and filling for clear or cloudy juice.
Washing, preheating, pulping, refining, evaporation, tube-in-tube sterilization and aseptic filling.
Washing, crushing, pulping, heat treatment, sterilization and filling for carrot or other vegetable juice and puree routes.
Project Quote
Ready to turn a product idea into an equipment quote?
Select a production line, review the main equipment modules, and send the project details ANMX needs to prepare a focused quotation.
Select a product line
Start with the product you plan to sell: NFC juice, clear juice, puree, paste, jam or beverage.
View LinesReview the equipment scope
Check the core systems for washing, extraction, pulping, evaporation, sterilization, filling and utilities.
View EquipmentRequest purchase quote
Share raw material, output, Brix or pulp target, final product, packaging format and destination country.
Send InquiryProduction Lines
Production lines organized by final product and process route.
Start with what you need to produce: NFC orange juice, concentrated juice, clear or cloudy apple juice, mango puree, tomato paste, vegetable juice, jam or prepared beverage. ANMX then matches the front-end handling, extraction, pressing, pulping, evaporation, sterilization, filling and utility sections.
2.5-30 t/h
Orange Juice / NFC Line
Designed for NFC orange juice and concentrated orange juice. The line starts with crate receiving, washing, roller inspection, elevator transfer and sizing, then moves into citrus extraction, juice collection, pulp/oil refining, sterilization and aseptic filling.
- Final product
- NFC juice / concentrated juice
- Core sections
- Receiving, washing, sizing, extraction, refining, filling
- Packaging
- Aseptic bag, BIB, PET, glass bottle or gable-top options
5-100 t/h
Apple Juice Line
Designed for clear, cloudy or decolorized apple juice. Typical sections include washing, inspection, elevator feeding, crushing, belt pressing, enzymolysis, filtration, concentration, sterilization and filling.
- Final product
- Clear / cloudy apple juice
- Core sections
- Washing, crushing, belt pressing, enzymolysis, filtration
- Process note
- Belt press route; supplier reference lists apple juice yield at 75% or above
1-30 t/h
Mango / Tomato Processing
Designed for mango puree, mango jam and tomato paste. The route uses washing, sorting, preheating, pulping, refining, evaporation, tube-in-tube sterilization and aseptic filling for high-viscosity product handling.
- Final product
- Puree / paste / jam
- Core sections
- Preheating, pulping, refining, evaporation, tube-in-tube sterilization
- Packaging
- Aseptic bag, BIB, glass bottle, PET bottle or gable-top options
1-20 t/h
Vegetable Juice / Puree Line
Designed for carrot and other vegetable juice or puree products, including NFC juice, concentrate, puree and fermented pulp. The route covers washing, inspection, crushing, pulping, heat treatment, sterilization and filling.
- Final product
- Vegetable juice / puree / fermented pulp
- Core sections
- Washing, crushing, pulping, heat treatment, sterilization
- Process note
- Carrot reference line supports NFC juice, concentrate, puree and fermented pulp
Production Process
A processing line should follow the material, not a list of machine names.

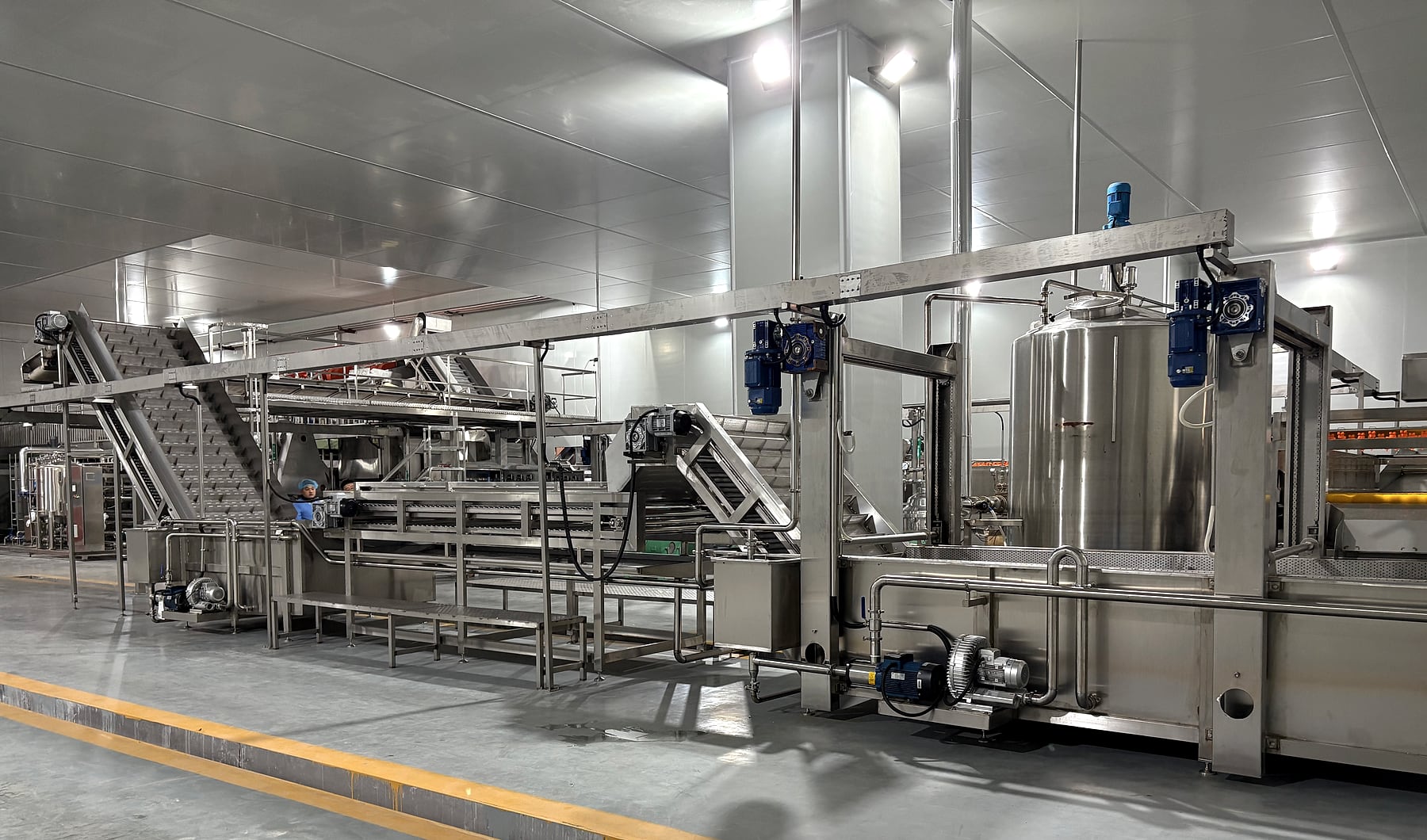

ANMX structures each proposal by production route. Fresh fruit or vegetables first enter receiving, washing and inspection, then move into extraction, pressing or pulping, followed by refining, evaporation or heat treatment, sanitary buffer tanks and final aseptic or hot filling.
-
01
Receiving & Controlled Feeding

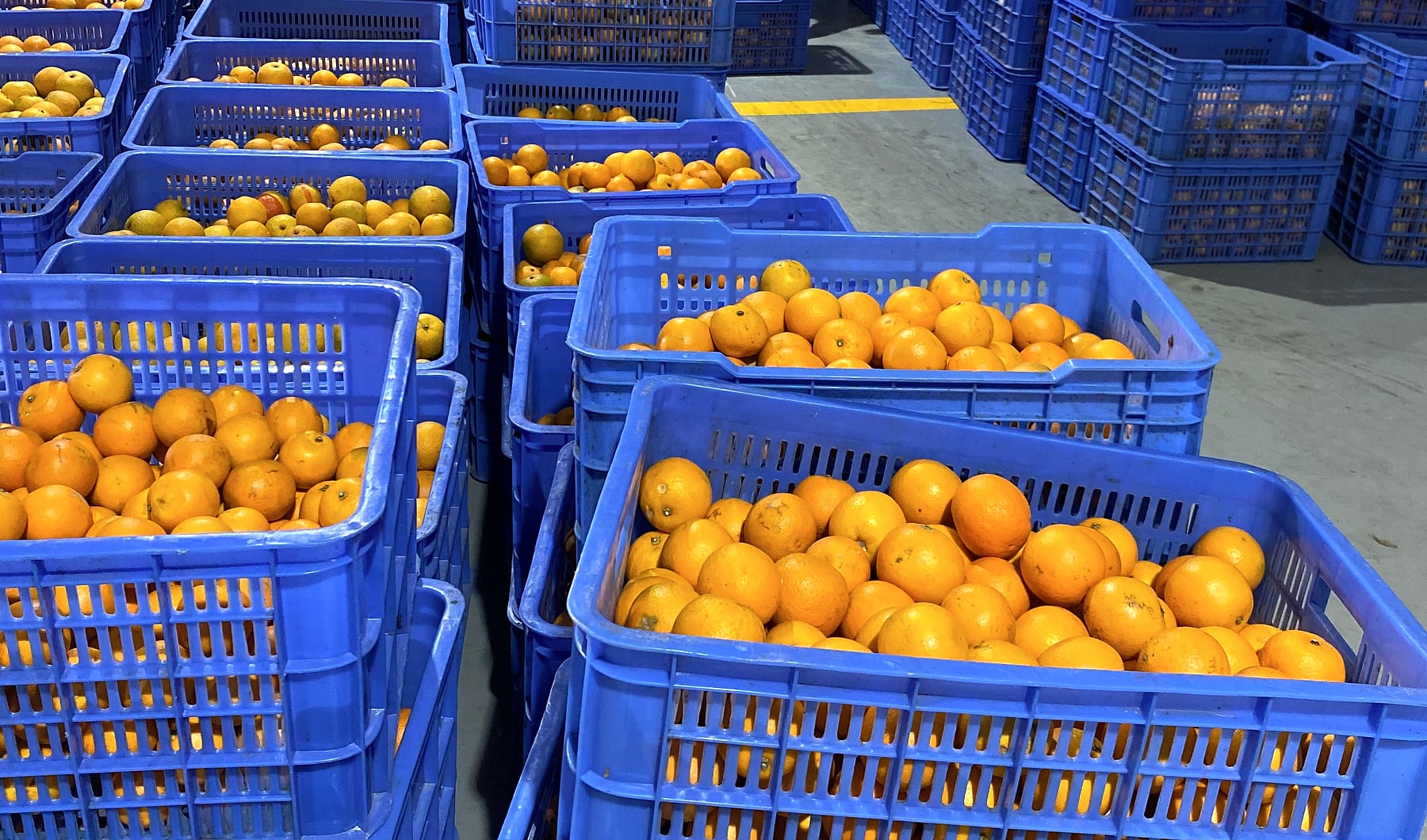

Fruit or vegetables are received in crates, bins or hoppers. Scraper elevators and screw conveyors keep the front-end feed stable and move pomace or peel away from the line.
-
02
Washing, Sorting & Grading

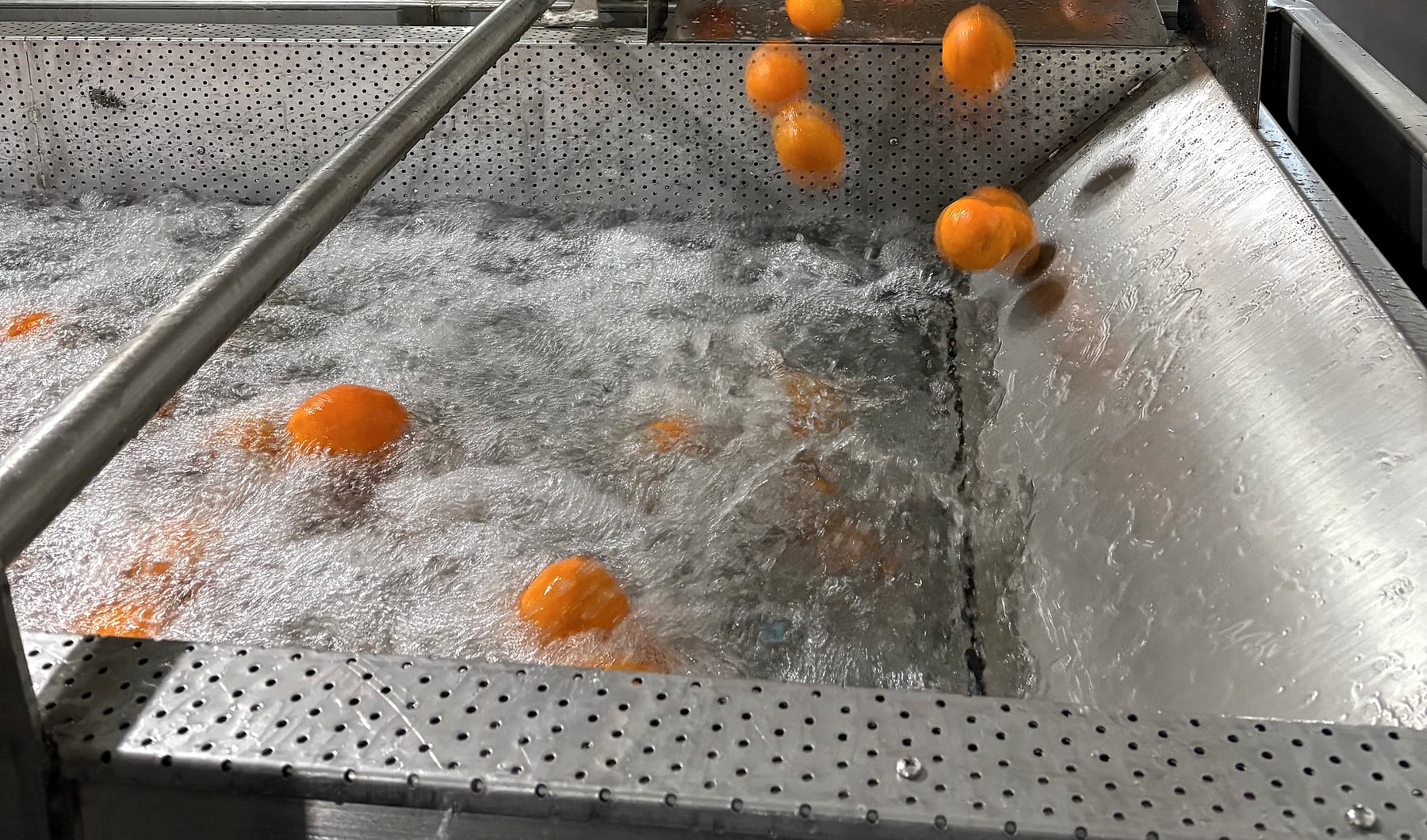

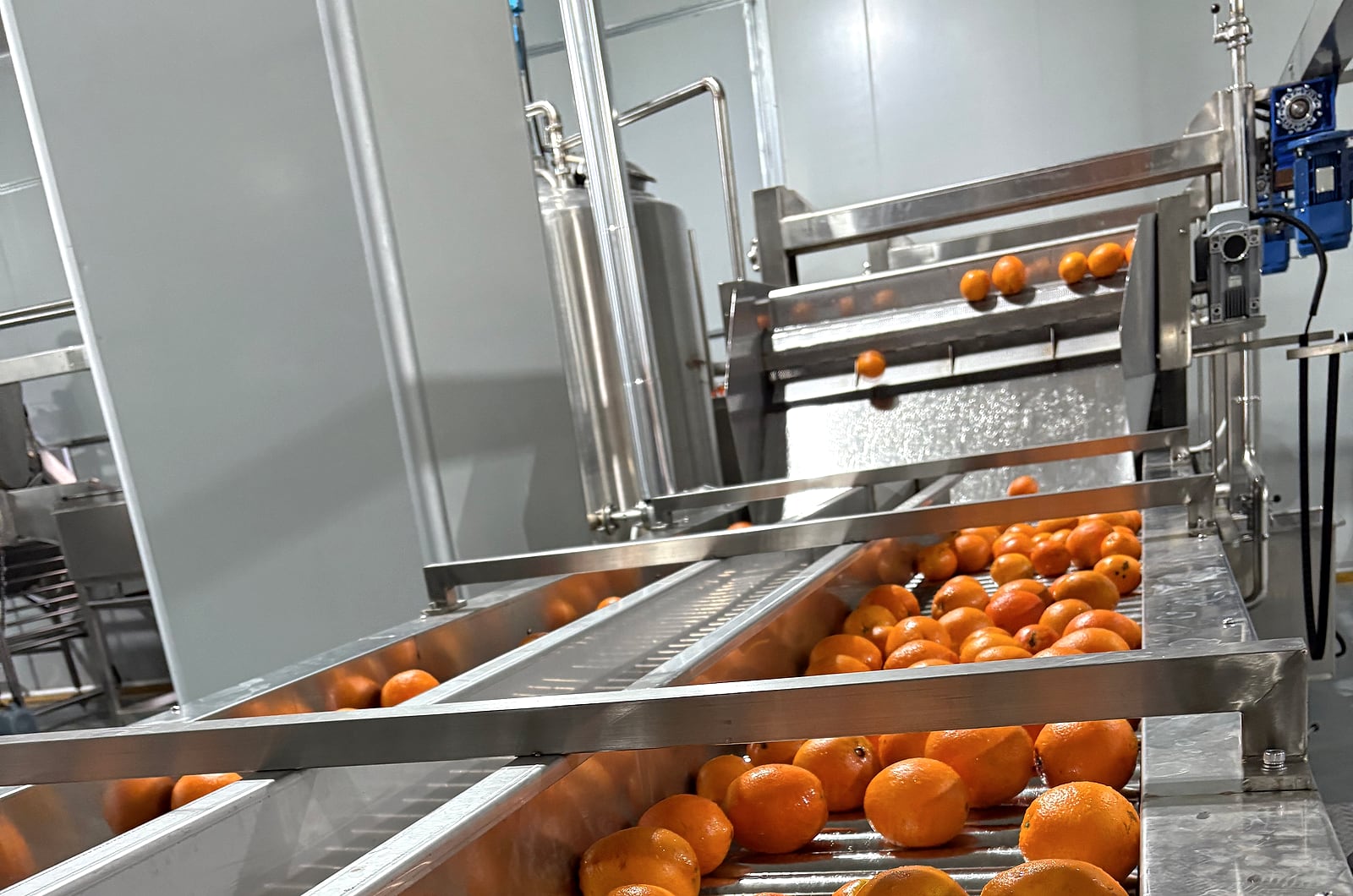

Bubble washers, brush washers and roller inspection conveyors remove soil, floating impurities and unsuitable fruit before extraction or pulping. Citrus projects may also require sizing before cup extraction.
-
03
Extraction, Pressing or Pulping
Orange lines use citrus extraction and finishing; apple lines usually use crushing and belt pressing; mango, tomato and vegetable routes use preheating, pulping and refining to reach the required texture.
-
04
Refining, Filtration & Buffer Tanks
Seeds, peel, coarse pulp or suspended solids are controlled before product enters stainless storage, mixing or buffer tanks. The tank section keeps flow stable between upstream processing and downstream heat treatment.
-
05
Evaporation & Heat Treatment
Falling-film evaporators suit heat-sensitive juice concentration, while forced-circulation and tube-in-tube systems handle viscous puree or paste. Tubular sterilizers are used for juice and beverage routes.
-
06

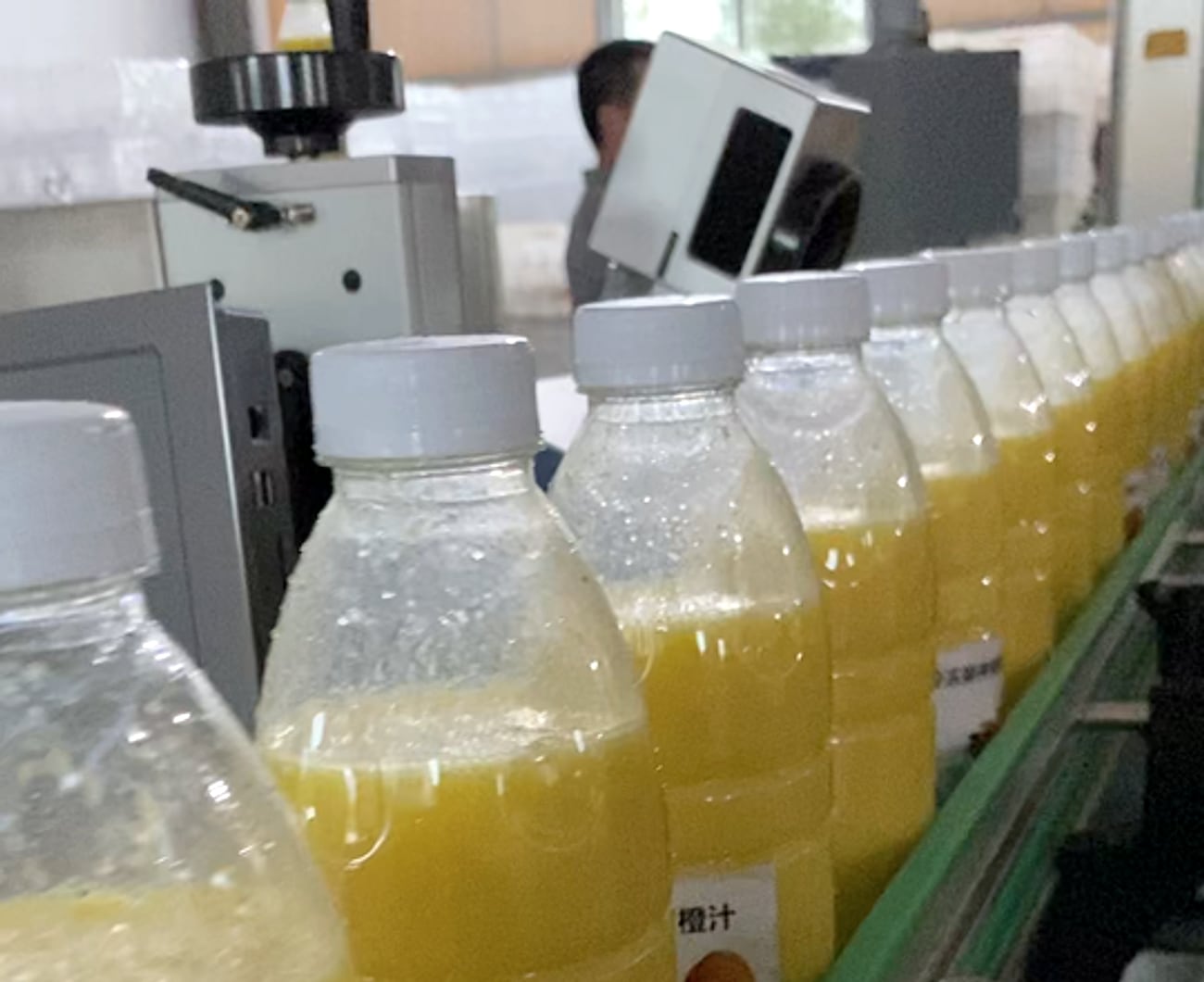

Filling, CIP & Packaging
Aseptic bag filling, BIB, PET, glass bottle, can or gable-top packaging can be selected by shelf-life and market plan. CIP, water treatment, degassing, coding and labeling complete the daily production system.
Process Knowledge
What buyers should check before choosing a juice or puree line.
A reliable proposal should explain what happens to the product at every stage: what enters the line, what is removed, how quality is protected and which filling format the final product will use.
Front-end hygiene and fruit condition
Public citrus processing references place grading and washing before extraction because unsuitable fruit and poor washing increase contamination risk.
Yield, pulp and product route
Orange juice must be finished or refined after extraction. Apple juice normally needs crushing and pressing, and puree lines need pulping and refining instead of clear-juice filtration.
Heat treatment matched to viscosity
Clear juice, high-pulp orange juice, mango puree and tomato paste need different heat-exchanger choices based on viscosity, pulp content, Brix target and shelf life.
Packaging decides the final section
Aseptic bags and BIB are common for bulk juice, puree and concentrate, while PET, glass, can or gable-top packages require different filling and cooling equipment.
Line Engineering
Build the line around product route, not only equipment names.
A good proposal connects every machine to a process purpose: remove soil, control fruit quality, extract or pulp, separate unwanted solids, concentrate or sterilize, hold product in sanitary tanks and fill into the chosen package.
Front-end handling
Fruit type, size, condition, seasonality and feeding method determine whether the line needs scraper elevators, screw conveyors, bubble washing, brush washing, roller inspection or sizing.
Juice or puree making
Citrus extraction, screw extraction, belt pressing, crushing, pulping and refining are selected by product texture, yield target and whether the output is clear juice, cloudy juice or puree.
Heat treatment and concentration
Steam blanching, evaporation, tubular sterilization and tube-in-tube sterilization are matched to viscosity, pulp content, Brix target, color protection and shelf-life requirement.
Storage, filling and utilities
Storage tanks, buffer tanks, pumps, CIP cleaning, water treatment, aseptic bag filling, BIB, bottle or can packaging complete the system.
Equipment Modules
Main equipment modules by processing stage.
Each equipment group below is placed where it belongs in the production route, so buyers can see why it is used and which capacity range or product condition it supports.

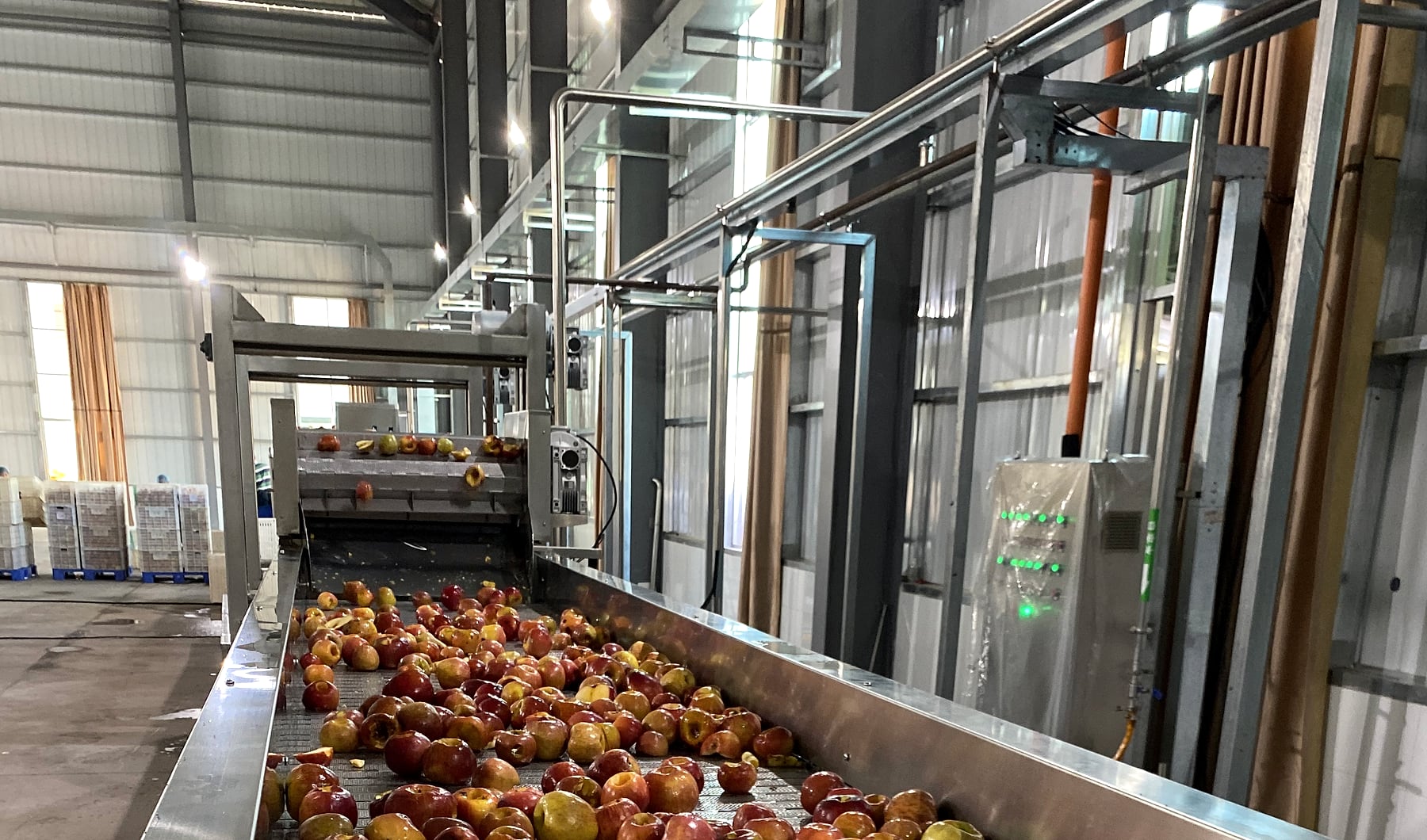

Washing & Sorting
Scraper elevators, screw conveyors, bubble washers, brush washers, rotary brush washers and roller inspection conveyors prepare fruit before extraction or pulping. Typical catalog ranges cover 1-15 t/h and 25-150 mm material handling.
- 1-15 t/h washing range
- 25-150 mm material handling
Feeding, Blanching & Extraction
Steam blanchers, chain plate blanchers, screw blanchers and screw juice extractors soften material, control enzyme activity and prepare juice or pulp. Depending on model, the catalog range covers approx. 0.4-24 t/h.
- 0.4-24 t/h by model
- PLC temperature control options

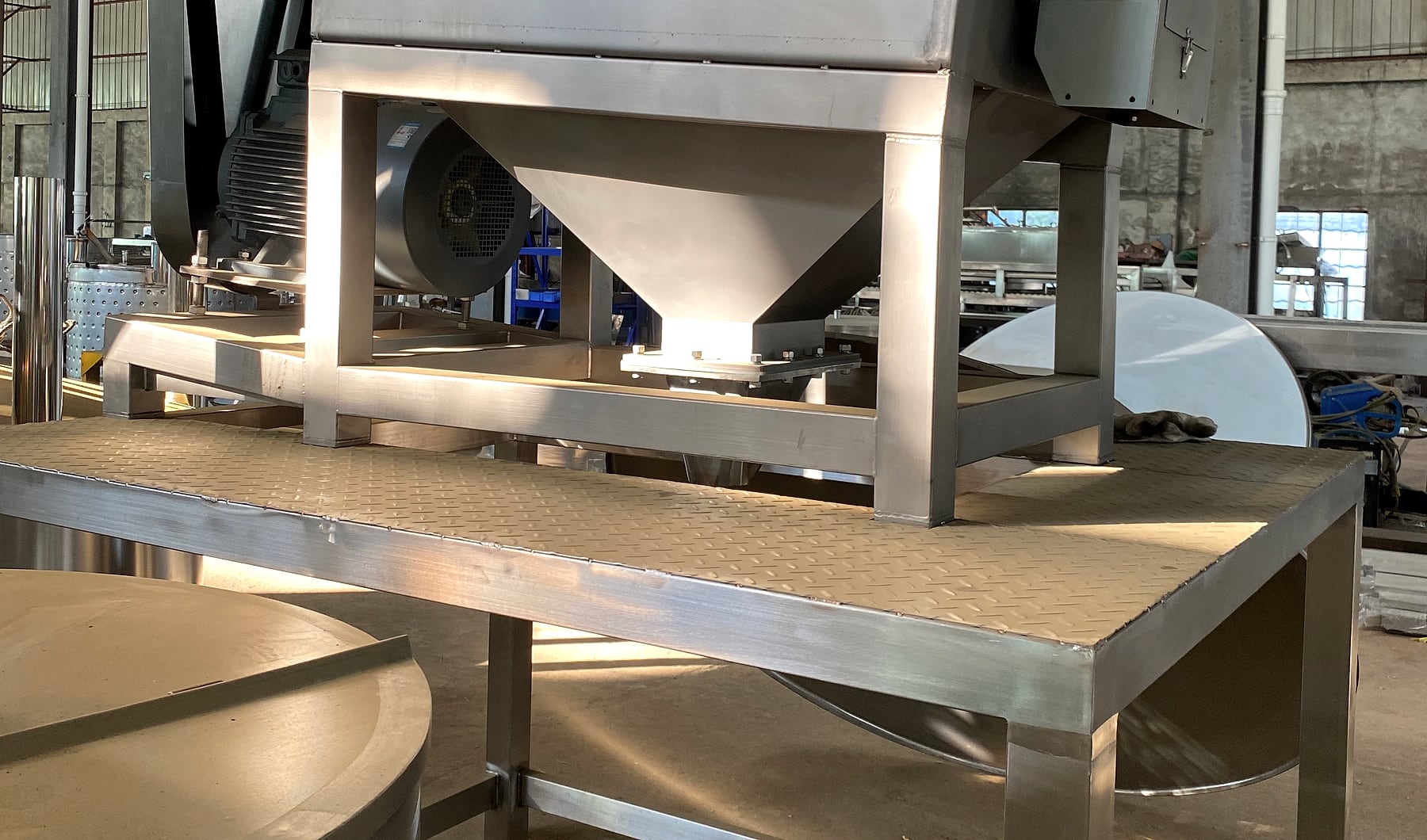

Pitting & Crushing
Pitting machines, pit washers, sawtooth crushers and hammer crushers prepare material before pressing or pulping. Sawtooth crushers cover approx. 3-52 t/h; hammer crushers cover heavy fruit crushing routes.
- 3-52 t/h crusher range
- 2-5 mm crushing particle reference
Citrus Processing Sections

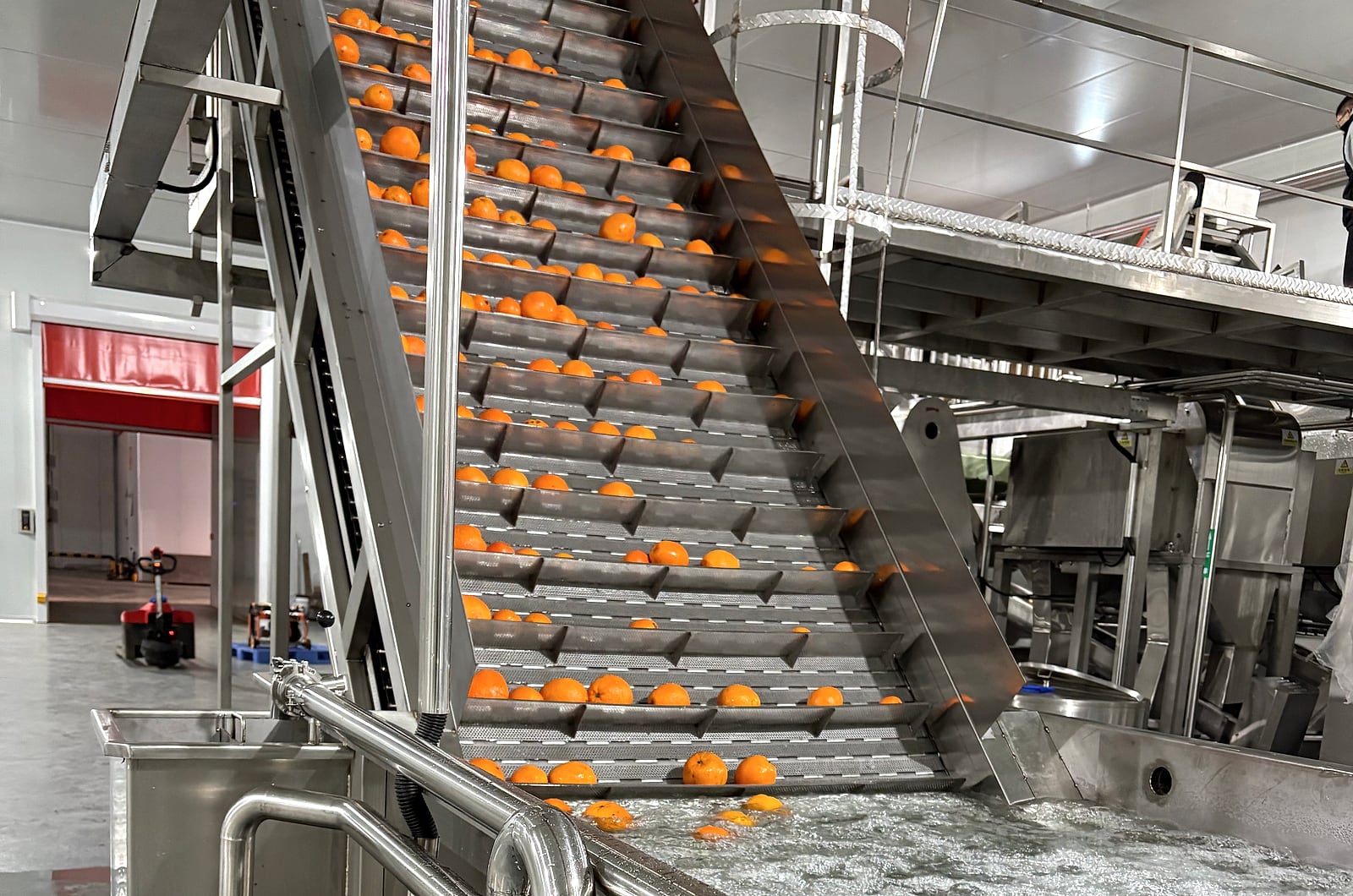

Citrus receiving, washing, elevation, sizing and extraction sections support orange and lemon projects. Belt sizing prepares fruit for cup extraction, while citrus oil extraction and refining can be added when peel oil recovery is required.
- 3-50 t/h process range
- 55-110 mm citrus fruit reference

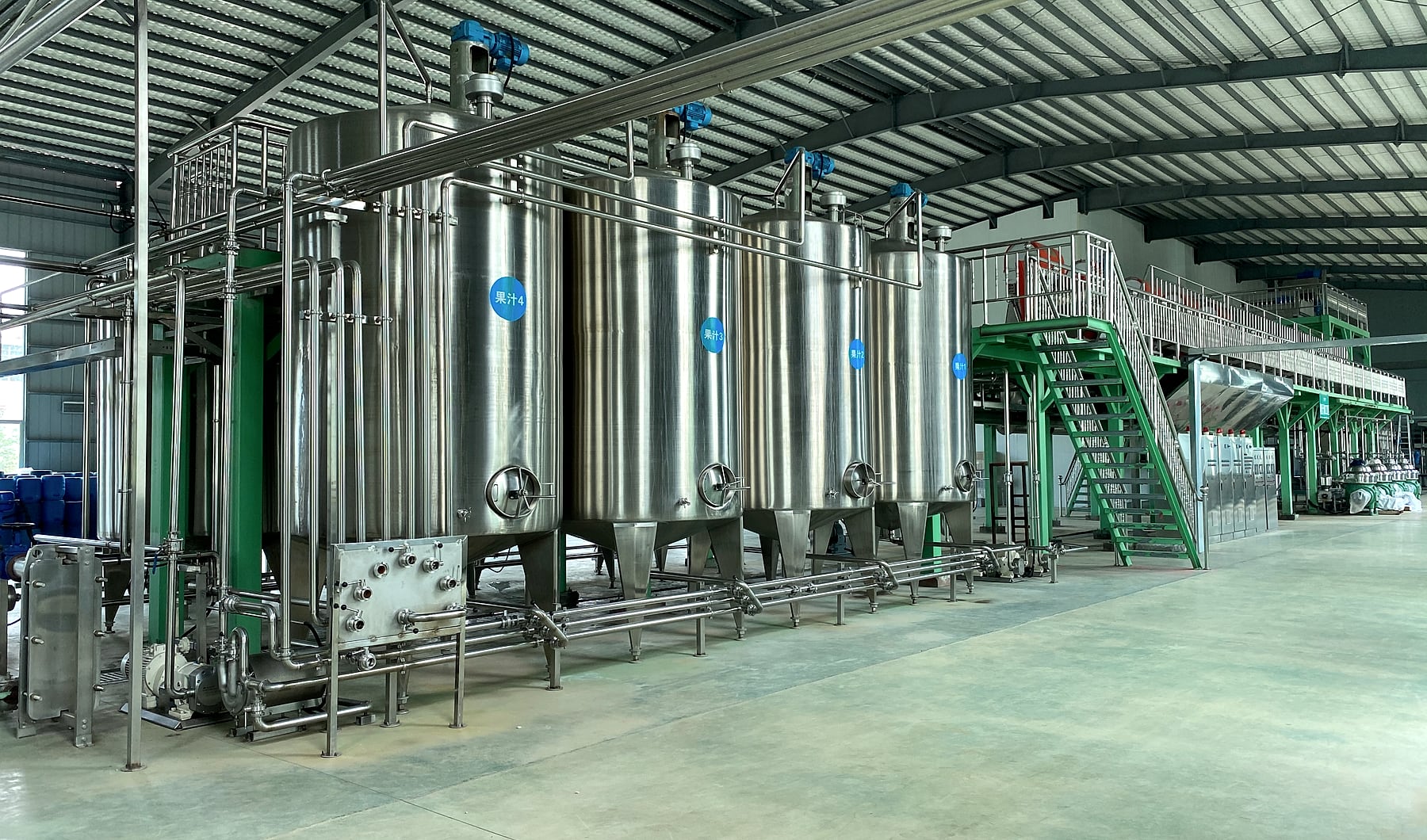

Refining, Pulping & Tanks

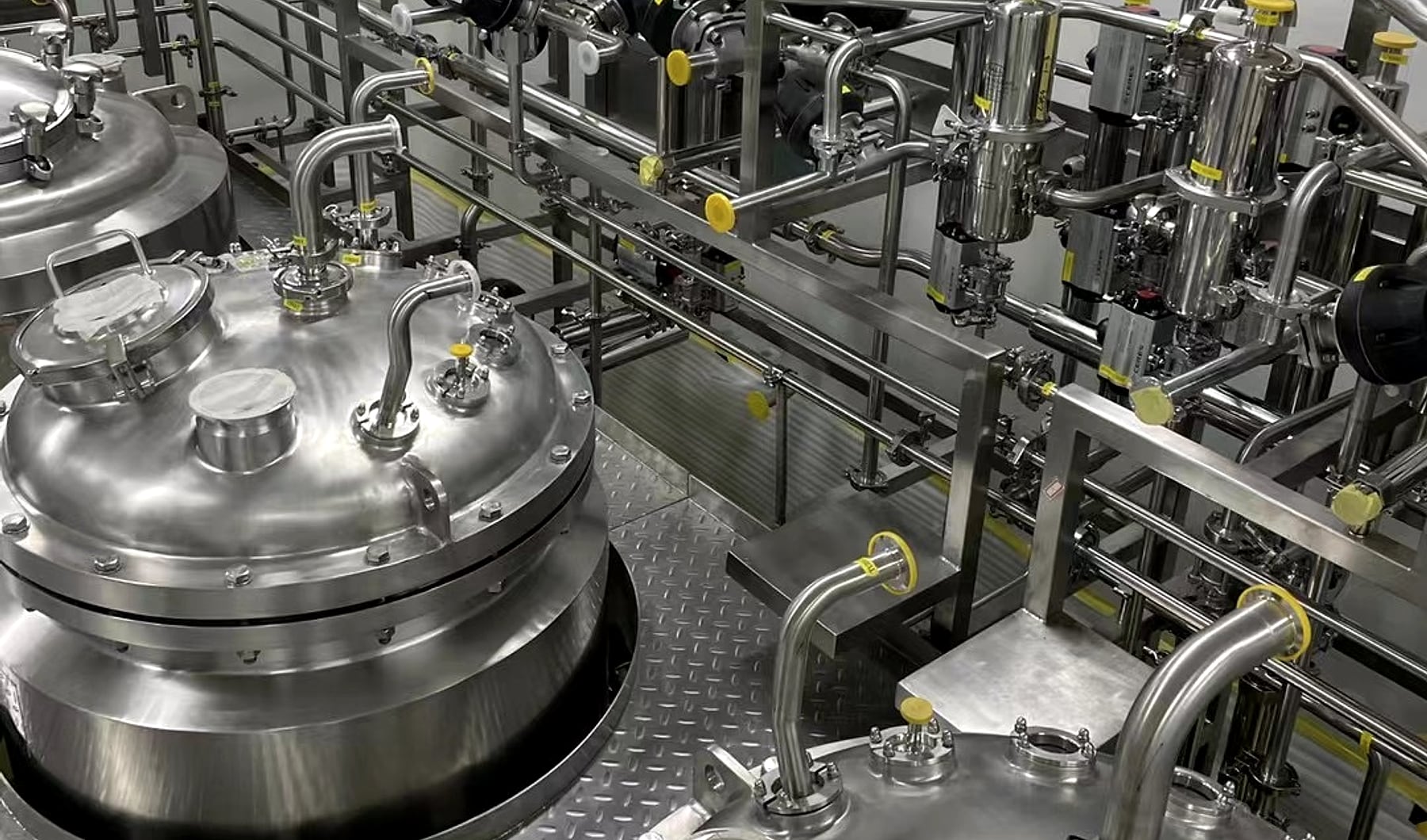

Juice, pulp and oil refiners, double pulpers, extraction tanks, storage tanks and buffer tanks control pulp, peel, seed, oil and intermediate product transfer before heat treatment.
- 3-10 t/h refining / pulping
- CIP spray-ball tank options
Evaporation Systems

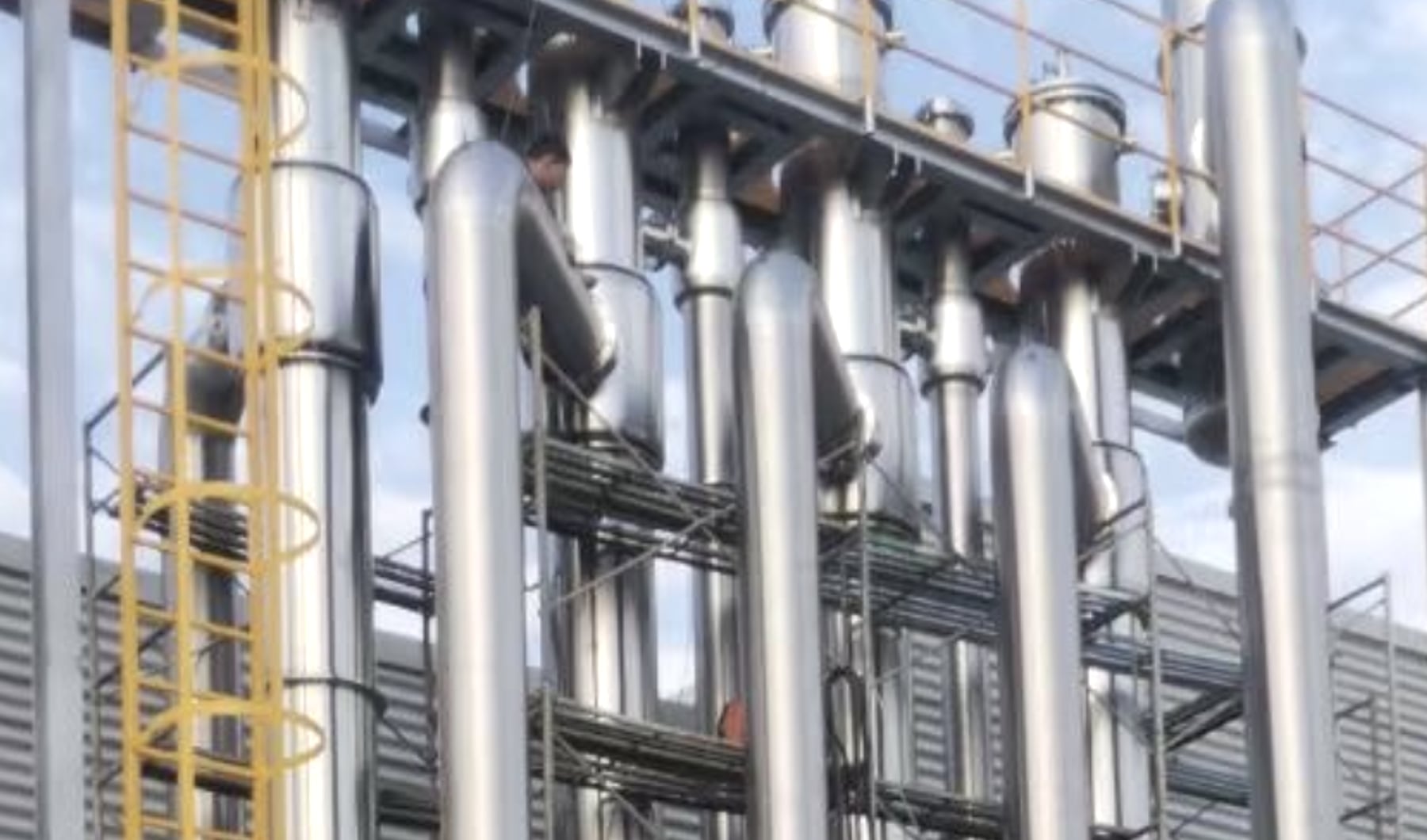

Forced-circulation evaporators are used for viscous puree and paste; falling-film evaporators are used for heat-sensitive juice concentration, with water evaporation references up to approx. 20 t/h.
- 0.5-20 t/h water evaporation
- Single to multi-effect options

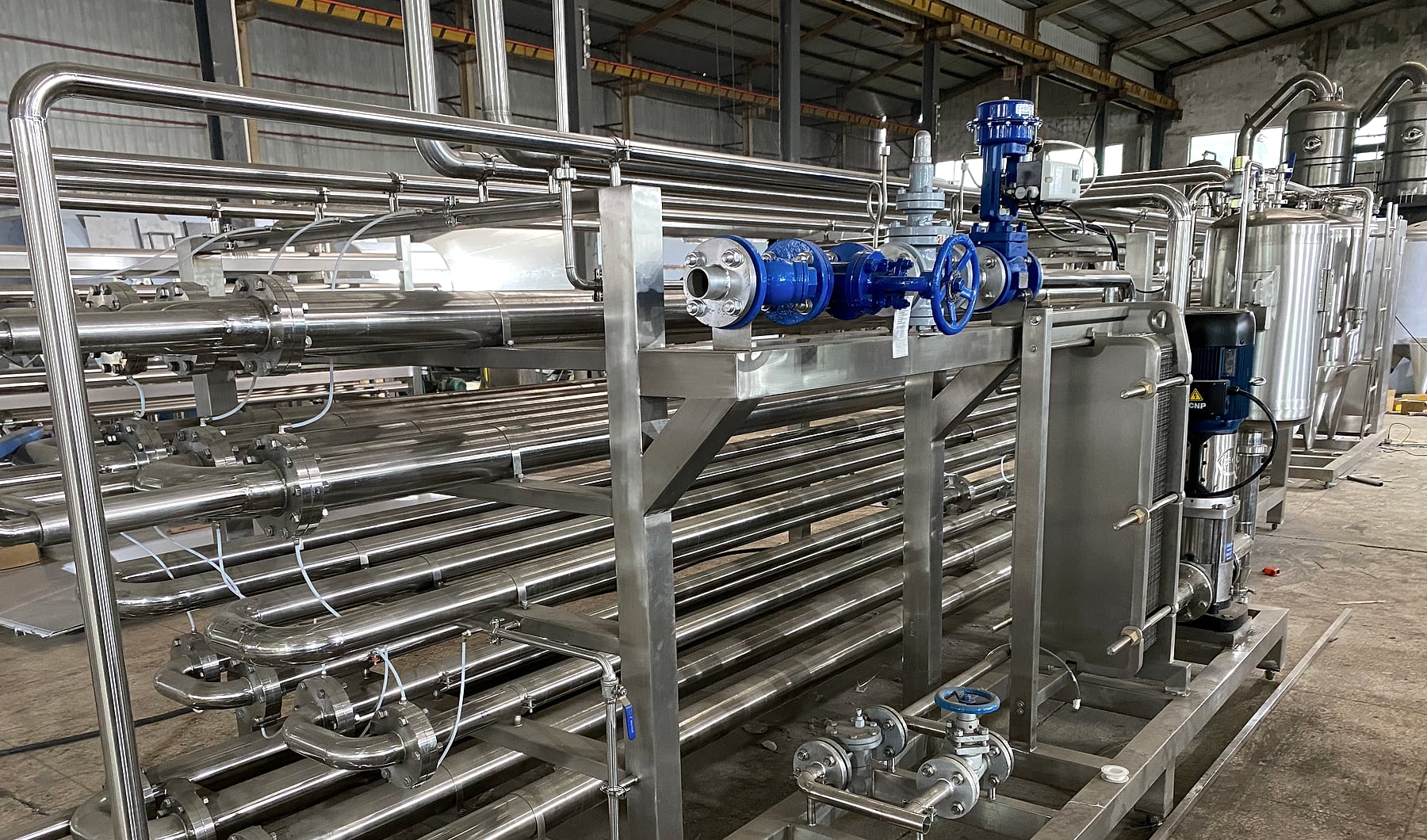

Sterilization Systems
Tube-in-tube sterilizers suit high-viscosity puree, paste and jam routes. Tubular sterilizers suit juice and beverage products with lower viscosity or higher pulp content.
- High-pulp and high-viscosity routes
- CIP / SIP compatible designs

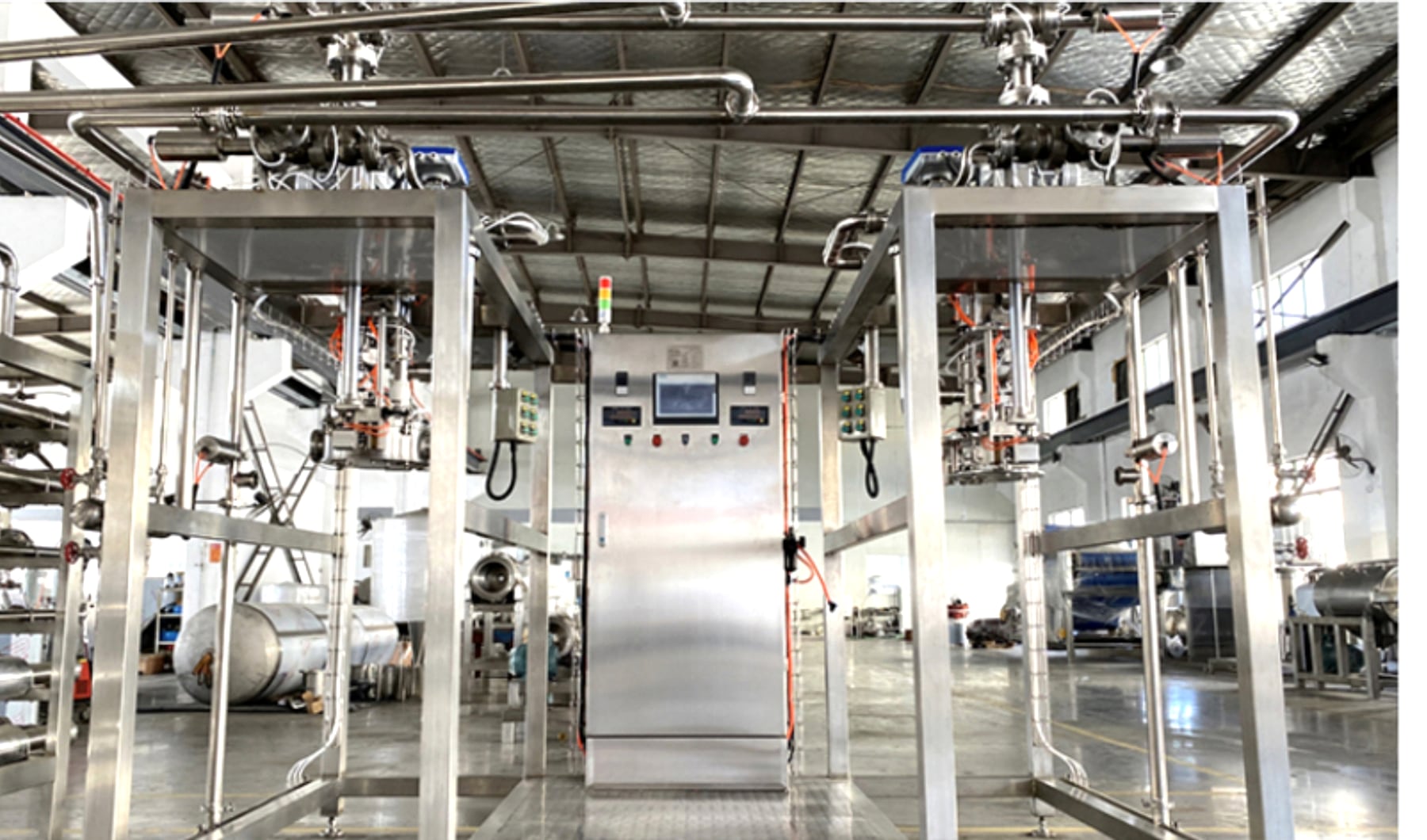

Aseptic Filling
Aseptic bag filling systems cover 5-220 L bags with reference capacity up to approx. 14,000 L/h. BIB filling covers 1-30 L packages for shelf-stable juice, puree, jam or concentrate.
- 5-220 L aseptic bags
- 1-30 L BIB filling
Engineering Data Points
Model and capacity references that make equipment comparison easier.
These are not final quotations; they are reference ranges from the equipment catalog. Final selection depends on material condition, viscosity, target Brix, hourly output, packaging format, utilities and automation level.
Approx. 1-15 t/h for fruit material handling, enclosed screw conveying and pomace transfer.
Approx. 3-52 t/h for apples, pears, frozen berries, bananas and selected vegetables before pressing or pulping.
Approx. 1-22 t/h, with apple juice yield listed at 75% or above in the equipment reference.
Approx. 3-20 t/h sizing before cup extraction, with citrus fruit diameter reference of 55-110 mm.
Forced-circulation systems for high-viscosity paste and falling-film systems for heat-sensitive juice, with water evaporation up to approx. 20 t/h.
For 5-220 L bags, with reference filling capacity of approx. 5,000-14,000 L/h depending on model.
Support Systems
Support systems for cleaning, packaging and daily production.
Support equipment includes mesh belt dryers, drying rooms, CIP cleaning, shower pasteurization, bottle inversion sterilization, can filling and seaming, four-in-one bottle filling, water treatment, vacuum degassing, labeling and coding. These modules are selected only when they fit the product route and packaging plan.
Discuss Full LineAbout ANMX
A practical partner for fruit, vegetable and beverage processing lines.
ANMX International Trade Co., Ltd. turns equipment resources into clear export proposals: product route, capacity range, equipment scope, utility needs, packaging choice and commercial documents for overseas buyers.
We start from the product to be sold, then define receiving, washing, extraction or pulping, tanks, heat treatment, filling, CIP and packaging sections.
Capacity and model references from the equipment catalog are kept visible so buyers can compare whether the proposed line fits their output target.
The layout follows how operators run the line: wet front-end handling, controlled product transfer, heat treatment, sterile filling and cleaning routines.
Share raw material, final product, hourly capacity, packaging format and destination country; ANMX will help define the equipment scope for evaluation.
Custom Project Quote
Request a line proposal from ANMX.
Share your raw material, fruit size or condition, final product, hourly capacity, Brix or pulp requirement, packaging format, destination country and automation target. ANMX will use this information to prepare a practical equipment scope and quotation basis.
